Multiple servers

Kaio manages the Docker daemon of the host it runs on. To operate several hosts, run Kaio on each of them and have them join the instance you use as your entry point, which keeps the registry.

Nothing distinguishes a node from an ordinary Kaio: the API it already serves is the protocol. The instance you type commands at simply keeps a list of the others, knows whether they answer, and drives them from its own interfaces.

A server joins by presenting a join token, and the registry fills itself. All three interfaces then read it: the web UI under Manage → Nodes, the TUI’s Nodes tab, and kaio-cli node on the command line.

Join a server to the cluster

On the server you use as your entry point, take the join token. The first call mints it, and the same one comes back afterwards:

kaio-cli cluster token

To add a server to this cluster, run the following on it:

    kaio-cli join <this server's address> --join-token KAIO-1-8443a88d…

Run that on the new server. It enrols itself:

kaio-cli join 10.0.0.1:8080 --join-token KAIO-1-8443a88d… --name web-01

Joined the cluster at http://10.0.0.1:8080 as web-01.

Nothing was typed on the control plane, and its registry now holds web-01. The web UI shows it arrive without a reload: joining records an event, and the Nodes panel follows the same stream the dashboard does.

kaio-cli cluster info, on either server, says which role it plays: a server can keep a registry, belong to a cluster, both, or neither.

A joining server keeps that token, so the control plane can recognise itself on the few routes that ask for a credential: the ones that hand out a stack’s secrets or its volume data, used by Copying a stack. Nothing else asks for it again.

Rotating it (kaio-cli cluster token --rotate) stops new servers using the old string. Servers already enrolled keep running and keep being probed, but they still hold the retired token: on those few routes they answer 401 until they join again.

The name and the address

--name defaults to the host’s own name; the control plane lowercases it into the node-name charset and suffixes it if it is taken, so two hosts called web both get in, as web and web-2. Joining twice from the same address keeps the entry already there rather than piling up duplicates.

Identity

Every Kaio mints an identity for itself the first time it needs one, and keeps it for the life of its data/. It is what a joining server presents, and it becomes the id of its row in the registry.

That is what lets a node move. A server whose address changes (a DHCP lease, a container on a new bridge) simply joins again: it is recognised, its address is corrected, and it keeps its name. No second entry, no stale row left answering nothing.

A server that was reinstalled arrives with a new identity, so it cannot be recognised. It is enrolled alongside the row it replaces, and that old row is dropped only once the newcomer has actually answered at that address. Naming someone else’s address is therefore not enough to evict them.

It is also how a server knows not to enrol itself:

The control plane refused the join: This server is the control plane;
it cannot join itself

And how a probe tells a node apart from a stranger that took its address: /api/health carries the identity, so a reply from the wrong machine is reported as unreachable rather than vouched for.

Caution

Copying data/ clones the identity with it. A VM restored from a snapshot of another node will take over its registry entry. Delete the cluster row on the clone before first boot, or give it a fresh data/.

--advertise host:port says how the control plane should reach the new server, and you rarely need it: the joining server reports its own KAIO_ADDR, and the control plane fills in the address the request arrived from when that address is a wildcard. A server listening on 0.0.0.0:9000 is therefore enrolled at the right port without being told.

Give it when the address the server knows about is not the one others reach it at. Three cases, and the middle one is easy to miss:

• behind NAT, or a reverse proxy on another host and port;
• a published port that differs from the internal one. With ports: "9000:8080" and KAIO_ADDR=0.0.0.0:8080, the server reports port 8080, which is the one inside the container. The control plane pairs it with the host’s address and enrols an unreachable :8080. Pass --advertise <host>:9000;
• the two servers on the same machine, where the request appears to come from the control plane itself.

When nothing usable can be worked out, Kaio says so rather than guessing:

The control plane refused the join: Could not work out how to reach this node:
pass --advertise <host:port>

There is no other way in

A server enters the registry by joining, and by nothing else: there is no command and no form that declares one from the control plane. That keeps one fact in one place: the node itself says where it is, rather than someone retyping an address that may already be wrong.

Leaving

A server leaves on its own, with one command, from the machine that is leaving:

kaio-cli cluster leave

Left the cluster at http://10.0.0.1:8080. It no longer lists prod-01.

It tells its control plane to drop the registry entry, then forgets it locally. Both sides agree afterwards, and the route through the control plane closes with the entry.

A node does not depend on its control plane being up to go: if it cannot be reached, the node forgets the cluster anyway and says what is left to do.

Left the cluster at http://10.0.0.1:8080 locally.
Warning: it was not told (could not reach it: …), so it still lists prod-01.
Remove it there with `kaio-cli node rm prod-01`.

The control plane can also evict: kaio-cli node rm prod-01, Remove in the web UI, or d in the TUI. That drops the entry without telling the node, which keeps thinking it is a member until someone runs cluster leave on it. Either side can end it; only the node’s own command leaves both in agreement.

Caution

Leaving is bookkeeping, not a door closing. The registry is a directory: it records where servers are and whether they answer, and it has never authorised anything. A node does not consult its control plane before serving a request and is not told it was removed, so after leaving it still answers everyone it answered before, writes included. Nothing about membership restricts access, and nothing can until a node requires a credential of its own. See Security.

Reachability

Each node carries the result of its last probe, which is a call to the node’s /api/health:

Status	Meaning
online	The node answered and identified itself as a Kaio
offline	Unreachable, or it answered something else
unauthorized	Something in front of the node asked for a credential
unknown	Joined, never probed

VERSION is what the node reports, which is how you spot a host left behind by an upgrade. SHA is the git commit that binary was built from, which separates two hosts that claim the same version because one of them runs a build from before a fix. LAST SEEN is the last successful contact and survives a node going down, so you can tell a host that just died from one that never answered.

Probe on demand, one node or all of them:

kaio-cli node check prod
kaio-cli node check

The web UI does the same with the per-row Check button and Check All; the TUI with c and C.

The server also probes every node by itself, every KAIO_NODE_HEALTH_INTERVAL_SECONDS (default 60, 0 disables it). Probes run concurrently and a status change records an event, so a node flapping shows up in the event log while a node quietly staying online does not fill it.

Inspect

kaio-cli node ls              # every node, with its last probe
kaio-cli node show prod
kaio-cli --json node show prod

The web UI lists the same rows with a Check and a Remove button each, and the TUI’s Nodes tab does it with c (probe the selected node), C (probe them all) and d (remove it).

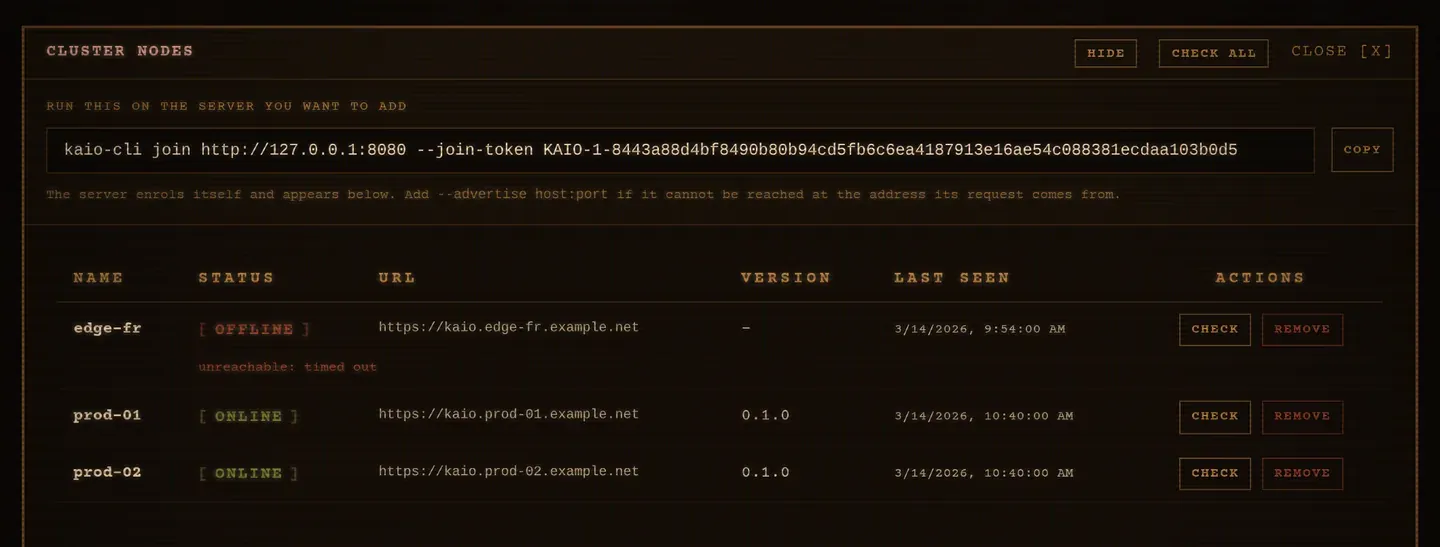

Manage → Nodes: the command that adds a server, and the servers that already answered it.

Act on a node

There are two ways, and they differ in what happens when the node leaves the registry.

Through the control plane

Pick a node from the @ this server ▼ selector in the header and the whole dashboard switches to it: stacks, containers, metrics, events, logs, CVE scans and the container terminal all report that node. The page moves to /node/<name>, so that view is a link you can share. Deploying a stack there is the ordinary + STACK button.

On the command line, name the node and what to run on it:

kaio-cli node prod-01 run status
kaio-cli node prod-01 run stack deploy web compose.yml
kaio-cli node prod-01 run tui

Anything after run is an ordinary Kaio command, forwarded by the control plane to that node.

Removing a node ends this. The route is the registry entry, so kaio-cli node rm prod-01 makes every one of the commands above answer:

Node 'prod-01' has not joined this cluster

Straight at it

Aiming at the address always works, cluster or no cluster:

KAIO_ADDR=10.0.0.2:8080 kaio-cli status

Or open the node’s own address in a browser: every Kaio serves the full web UI.

Caution

These two are not the same thing. The registry decides what the control plane can reach; it decides nothing about the node itself, which stays as open as any Kaio. Removing a node closes the route through the control plane, not the node’s own door. See Security.

Notes

• Every node needs its own data/. Nodes share nothing: each keeps its own database, its own stack files and its own history.
• The join token is a credential. It lives in the control plane’s database in clear text, and anyone who reaches that server can read it and enrol against it. Rotate it with kaio-cli cluster token --rotate if it leaks.
